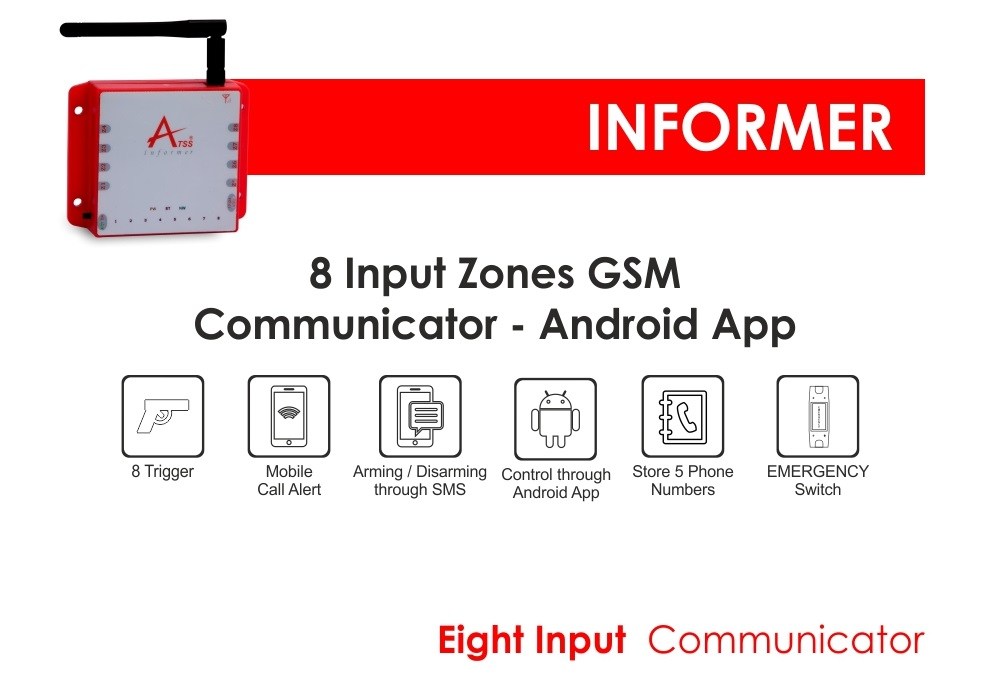

Active-Informer 8 Input Zones GSM Communicator - Android App

8 Zones available

Zones activation /deactivation can be done through SMS/ANDROID application

Both Zone Open and close alert available

Option to Receive Only Zone open alert or Zone close alert or Both available

Instant SMS/Call alert For zone open/close

Option to Receive only SMS Alert or Call Alert or Both available

Panic button is available

Memory available to store 4 phone numbers, 1 Admin Number

Device can be controlled through android application

Editable 15 Bit SMS Alert Message

Different alert SMS can be set for each zones

Compact Design

Extremely user friendly

Having network led to know signal strength

Having status led to display board is in idle or doing some operation

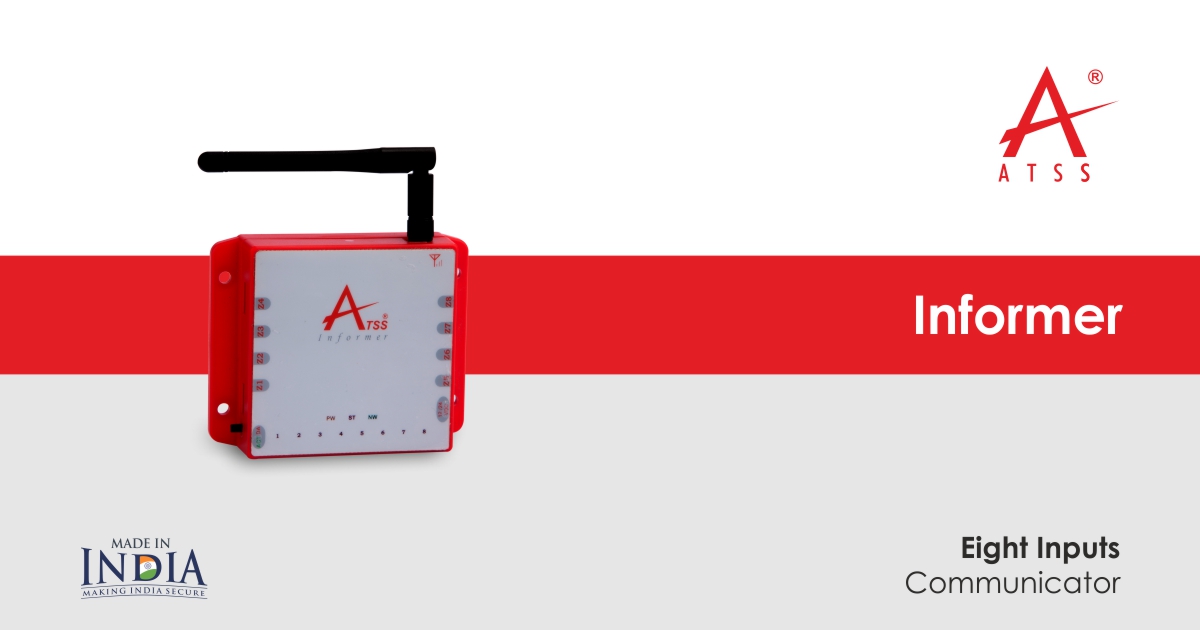

The INFORMER is Compact Sized GSM Communicator, It Consists of Eight Input. The Device can be connected to anything that provides a NO (Normally Open) or (Normally Closed) volt free alarm signal. E.g. thermostats, generators, fridges, freezers, fan panels, fire panels, intruder alarms etc.The Device Can be Controlled through Mobile SMS/Android App.

Max Power Consumption 24 Watts
Supply Voltage 12-24 V
Total Current Rating 2 amp(max)
Zone Response Time < 500 Millisecond
Zone Loop Resistance < 5kilo Ohm For Normally Closed
Max Length of Sensor Cable (multi core cable) 150 m (Depends on cable resistance)
GSM Antenna 3 db
Environment Residential/ Commercial/ Light Industrial
Max Humidity 95% Non-Condensing
Operating Temperature 0째 C To 45째 C
Storage Temperature -20째 C~+60째 C
Control Panel Dimensions(mm) (H X W X L)=115*25*110
Weight 125 g

Waste No More Time!

Install GSM Communicator SMS or Call Alert You!
